Metric Male Chrome Moly Housing, Nylon Race M24 x 2.00 RH 4 Pack

Metric Male Chrome Moly Housing, Nylon Race M24 x 2.00 RH 4 Pack

  • Rod Ends Metric Male

Metric Male Chrome Moly Housing, Nylon Race M24 x 2.00 RH 4 Pack


Free shipping on orders over $50 to the lower 48 states

$286.99

Part #: J0015082

Brand: Steinjäger

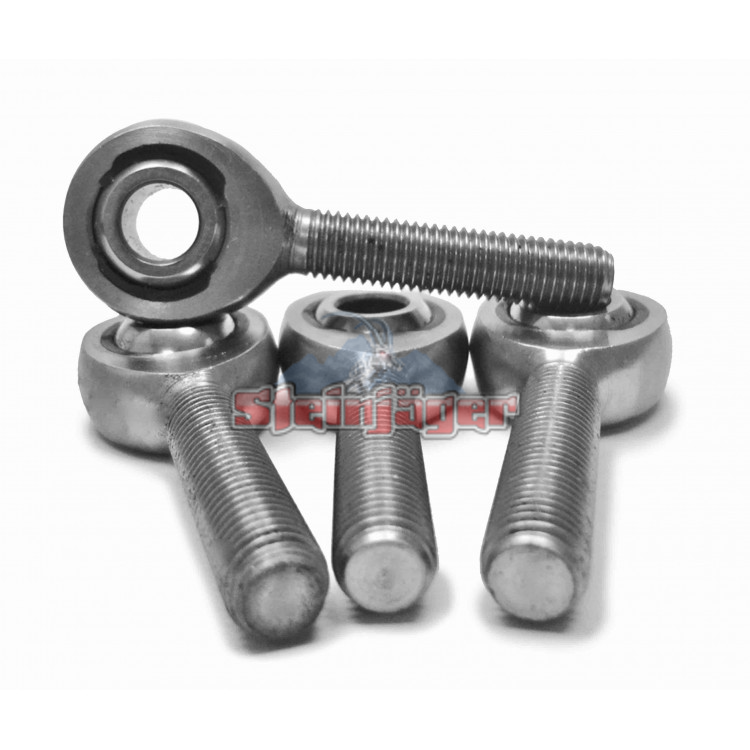

4 Pack, DXTM-25, Spherical Rod End Bearing, Male, M24 x 2.00 RH x 25mm Ball ID, 4130 Chrome Moly, Slotted Nylon Bearing Race, Bright Chrome Plated Finish

Approximate Weight (lbs): 5.44

California Residents: WARNING

Available Options

Quantity:

Add to Cart

Universal Rod Ends Metric Male Chrome Moly Housing, Nylon Race M24 x 2.00 RH 4 Pack


Quantity Per Package: This package includes 4 Spherical Rod Ends

Product Name: Male Spherical Rod End

Thread: Male M24-2.00 RH x 55mm

Ball ID: 25mm

Housing Material: 4130 Heat Treated Chrome Moly Steel

Finish: Bright Chrome Plated

Ball Finish: Hard Chrome Plated

Bearing Race: Slotted Nylon

Housing Width: 60mm

Base of Rod End to Center of Ball: 94mm

Ball Thickness: 31mm

Ultimate Static Load Rating: This rod end has a very high rating. We pull it to 40,000 lbs, but it is much stronger than that.

Common Other Names for this Product: chromoly heim joint, rose joint, Gelenkköpfe, Rotula Esféfico, Embouts, Teste a snodo

Application: Our larger chrome moly Spherical Rod Ends are used as sway bar end links, panhard bars, control arms, three link and four link suspensions and strut tower braces. This size rod end is often used in hand or foot actuated push-pull linkages.

Common Accessories: These Spherical Rod Ends are typically used with our WTF-M thread bungs, MHTconnecting tubes, female Spherical Rod Ends, jam nuts, and bolts.

Alternative Designs: For lighter duty linkage applications, consider our ASMM (steel raced) series, our DWTM (telfon raced) series, DSTM (stainless) series, or DPM (bronze zerked) series.

nch Alternative: The inch equivalent to this series is our MXM series.

Warning: Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
