1/2-20 RH Steel Housing, Bronze Race

Free shipping on orders over $50 to the lower 48 states

$0.00

Part #: MVF-8

Brand: Steinjäger

MVF-8, Bearings, Spherical Rod End, Female, 1/2-20 RH, Steel Housing, Bronze Race

Approximate Weight (lbs): 0.3

California Residents: WARNING

Out of Stock

Available Options

Overview

Reviews (0)

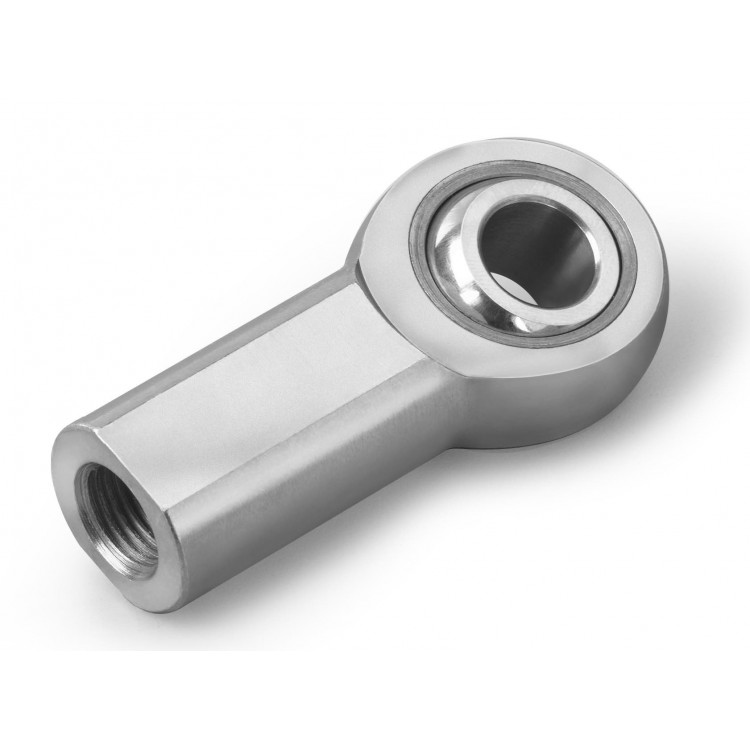

Bearings, Spherical Rod End Female 1/2-20 RH Steel Housing, Bronze Race

Application: MVF-series spherical rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to allow misalignment between two moving points.

Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.

Configuration: housing styles are subject to change based on manufacturing considerations.

Housing: low carbon steel, plated and dichromate treated for corrosion resistance.

Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., MVF-6S), mounting studs are made from low carbon steel, and are plated and dichromate treated for corrosion resistance. Standard stud threads are right hand. Specify mounting studs on your spherical rod ends to minimize assembly time, reduce the number of purchased components, overcome workspace limitations and increase the total misalignment to a minimum of 50°.

Race: the MVF-series features a bronze bearing race.
