Rod Ends Metric

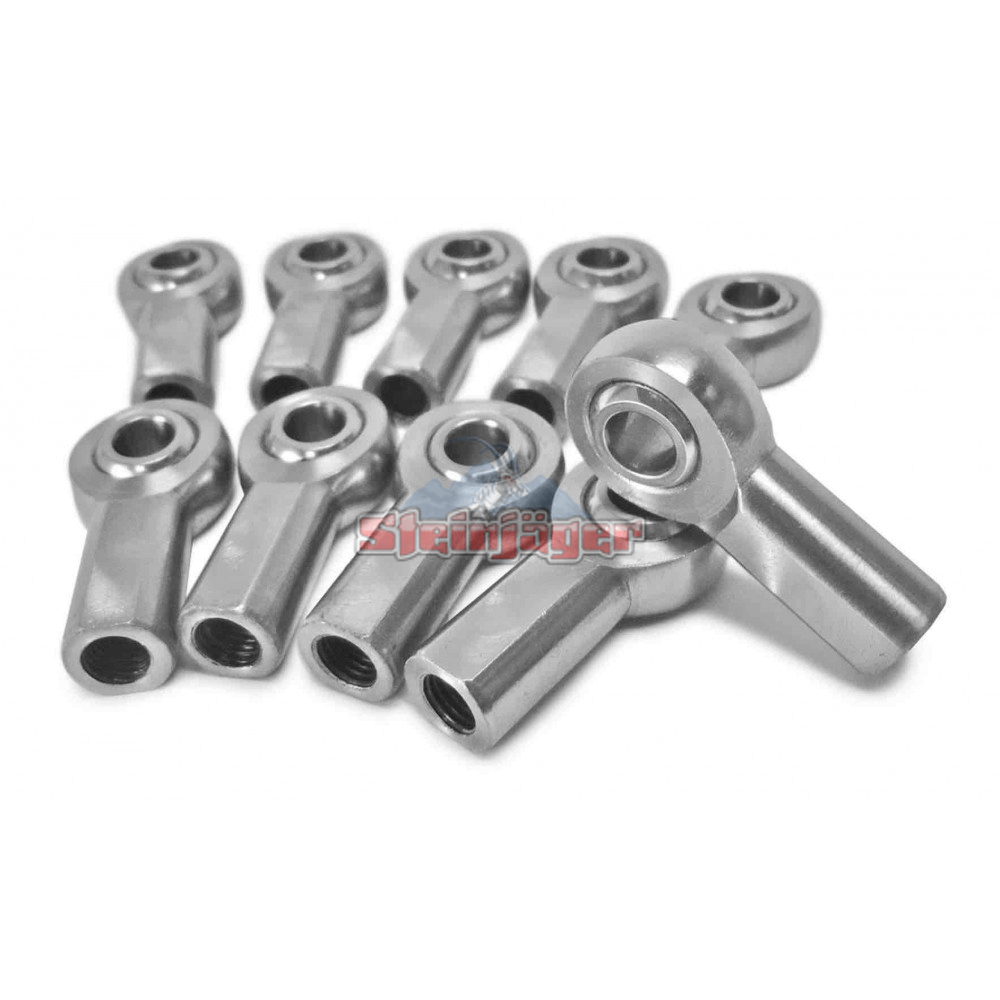

10 Pack, DWTF-6-ZCHF, M6 x 1.00 RH x 6mm Bore ID Female Spherical Rod End, PTFE Raced, Plated Zinc Clear, Dimensions per DIN Standard 648. Barrel shape may have a formed wrench flat instead of a full length flat.


California Residents: WARNING

Part #:

J0015103


Your Price:

$33.99


Approximate Weight (lbs): 0.49

Qty:



In Stock


Free shipping on orders over $50
To the Lower 48 States


    Available Options:



Universal Rod Ends Metric Female Steel Housing, PTFE Race M6 x 1.00 RH 10 Pack

Quantity Per Package: This package includes 10 Spherical Rod Ends

Product Name: Female Spherical Rod End

Thread: Female M6 x 1.00 RH x 12mm

Ball ID: 6mm

Housing Material: Steel

Finish: Zinc Clear Hex Free

Ball Finish: Hard Chrome Plated

Bearing Race: PTFE

Housing Width: 20mm

Base of Rod End to Center of Ball: 30mm

Ball Thickness: 9mm

Ultimate Static Load Rating: 2675 lbs

Common Other Names for this Product: heim joint, rose joint, Gelenkköpfe, Rotula Esféfico, Embouts, Teste a snodo

Application: Our larger chrome moly Spherical Rod Ends are used as sway bar end links, panhard bars, control arms, three link and four link suspensions and strut tower braces. This size rod end is often used in hand or foot actuated push-pull linkages.

Common Accessories: These Spherical Rod Ends are typically used with our WTF-M thread bungs, MHTconnecting tubes, male Spherical Rod Ends, jam nuts, and bolts.

Alternative Designs: For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF (stainless) series, or DPF (bronze zerked) series.

Inch Alternative: The inch equivalent to this series is our MTF series.

Warning: Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
