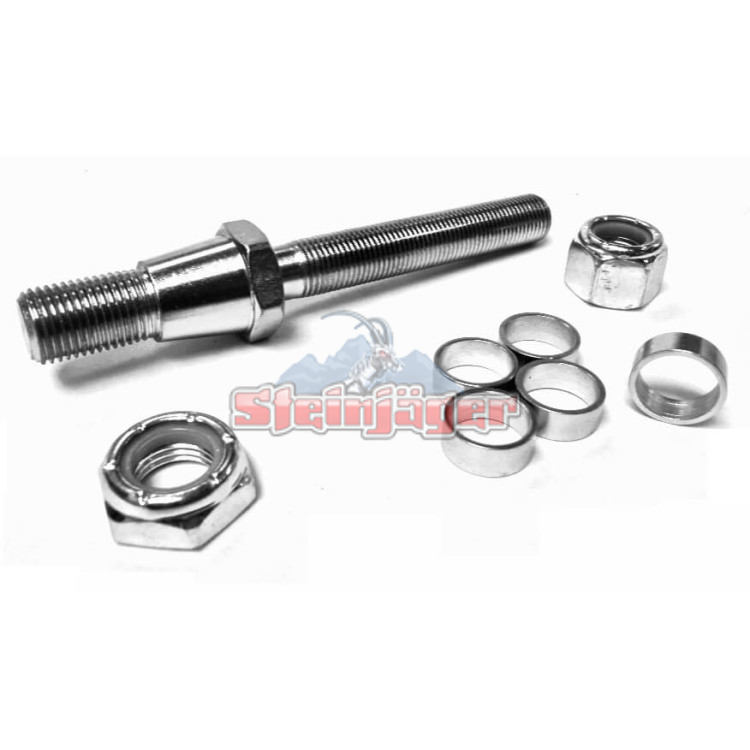

Universal Rod End Studs Tapered Style Fits 3/4 bore 9/16-18 7 degree taper

Quantity per package: This Package Includes One Tapered Rod End Stud and Five Adjustment Spacers

Product Name: Tapered Rod End Stud

Dimensions in inches unless otherwised noted:

A - 1.550
C - 4.967
E - 2.675
F - 0.675
H - 0.875
L - 0.620
Taper Angle - 7 degrees
Thread 1 - 9/16-18
Thread 2 - 3/4-16
Housing Material: 4130 Chrome Moly

Stud Material: Grade 8 Equivalent

Other Comman Names: Do-it-yourself Bump Steer Kit, Tie Rod Stud, Adjustable Tie Rod Stud

Custom Fabricating: Steinjager offers a full range of tube fabricating capabilities including sawing, cnc bending, robotic mig welding, tig welding, threading, drilling, tapping, reaming, deburring, forging, upset forging, press forming, press flattening, assembly, rotary swaging, power bending, and powder painting. Laser cutting, cnc turned parts, multispindle parts, and progressive stampings are also available as part of tubular weldments and assemblies. Steinjager also offers complete wireforming capabilities including all of the above process, plus zinc plating, heat treating and cold heading. Let us custom build and/or private label your application for you!
